Edge Forming Machine For Ceramic Band Heater New Version

Brand Name : GME

Place of Origin : China

MOQ : 1 unit

Payment Terms : L/C, Western Union, T/T, Paypal

Supply Ability : 1000 units per month

Delivery Time : 1-3 weeks

Packaging Details : Standard exporting package

Material : Steel

Color : White

Size : 460x150x260mm

Gross weight : 12kg

Voltage : 220V

Power : 250W

Application : Ceramic band heater edge forming

Contact Now

Edge Forming Machine For Ceramic Band Heater New Version

SAFETY

Pay attention to electricity safety.

During operation, keep your hands away from the gear.

The equipment must be placed on a flat ground during installation and cannot be shaken.

INTRODUCTION

This machine presses the metal sheet into a wave shape, which is used for the edging of the ceramic band heater.

Edge Forming Machine For Ceramic Band Heater New Version

OPERATION INSTRUCTION

1. Power on, start switch

2. Prepare the metal sheet that need to be formed, and select the control speed.

Edge Forming Machine For Ceramic Band Heater New Version

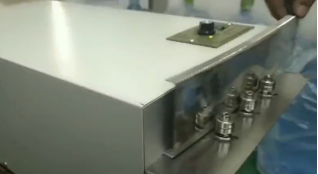

3. Insert the metal sheet into the front of the gear and push it along the gear from beginning to end.

Edge Forming Machine For Ceramic Band Heater New Version

4. Turn off the power after use.

PACKING LIST

The product is equipped with a host, a power cord, and a spare gear (there are two gears in a set).

MAINTENANCE

1. After the gear is worn, the gear should be replaced in time

2. In terms of daily maintenance, it is necessary to clean the iron filings on the gears every day.

STORAGE

Pay attention to waterproof and moisture-proof.

TECHNICAL SPECIFICATIONS

Size	460x150x260mm
Net. Weight	12kg
Voltage	220V
Power	250W
Material	Steel
Metal sheet size	Width 5-20mm; Thickness 0.3-0.8mm
Packing size	52x20x30cm
Gross weight	20kg
